Protection Panels
Click on any of the images for a full view.
Protection panels are crucial components in modern electrical distribution systems, designed to safeguard electrical circuits, equipment, and personnel from faults and hazardous conditions. These panels integrate advanced protective devices and systems to ensure reliable operation, minimize downtime, and enhance safety across various applications.
Our panels offer comprehensive protection by incorporating best-in-class relays from Manufacturers such as Schneider Electric, SEL, Siemens and ABB. The selection process ensures all customer requirements and protection function needs are met. The Modular Design allows for easy customization and scalability to meet project requirements.
Key Features
- The design of protection schemes and systems are appropriate to the application.
- High-quality equipment Relays, Annunciators, Test blocks and all wiring ancillaries.
- Relay programming customized to the protection scheme as required.
- Schematic drawings & wiring lists using advanced automated CAD software.
- Factory assembly and wiring of designed system.
- System testing to the scheme drawing to verify the functions manufacture and design. of equipment,
- Standard Dimensions: 2100 x 850 x 840 mm.
- Custom-sized enclosures.
- Free standing, floor fixing holes provided on bottom frame.

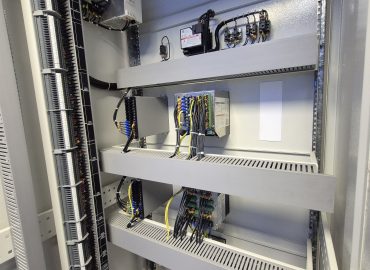

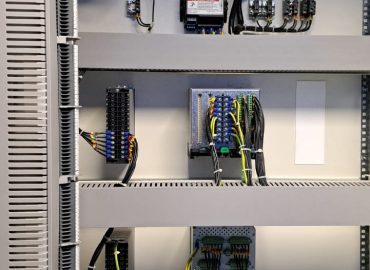

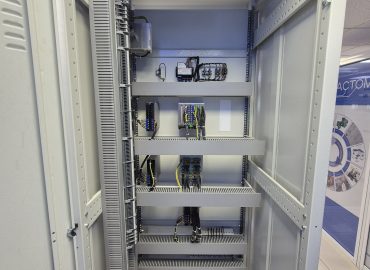

- Protection Panel
- Hinged front and rear doors, both lockable to prevent access to unauthorized. personnel.
- Front access for operation.
- Rear access for cable interface.
- Removable side panels, ventilation if required.
- Various types of mounting plates with custom-made cut-outs for different relays and equipment including standard 19″ type.
- Bottom cable entry, optional at the top.
- Cable supports and removable gland plates.
- Internal ambient control and lighting including door switch.
- Lifting points available.
